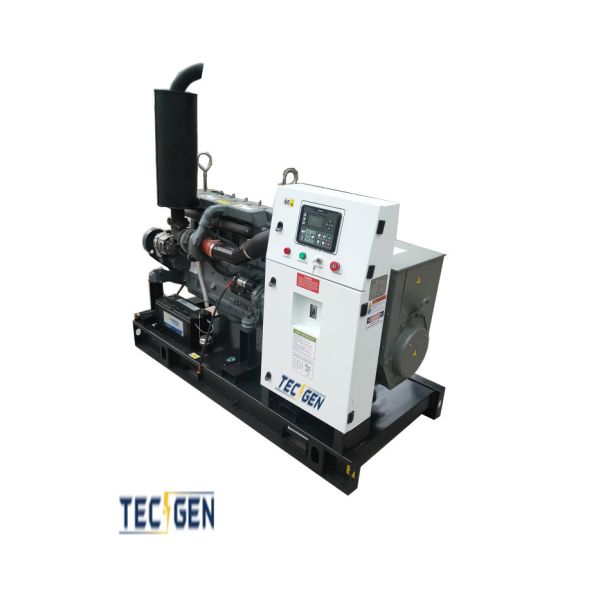

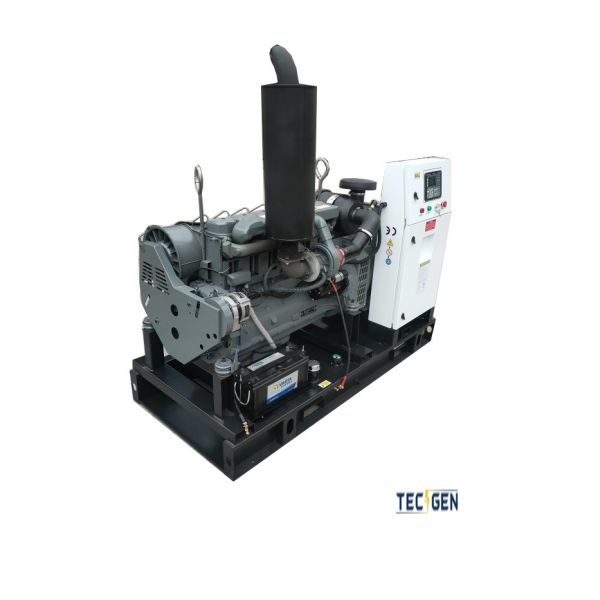

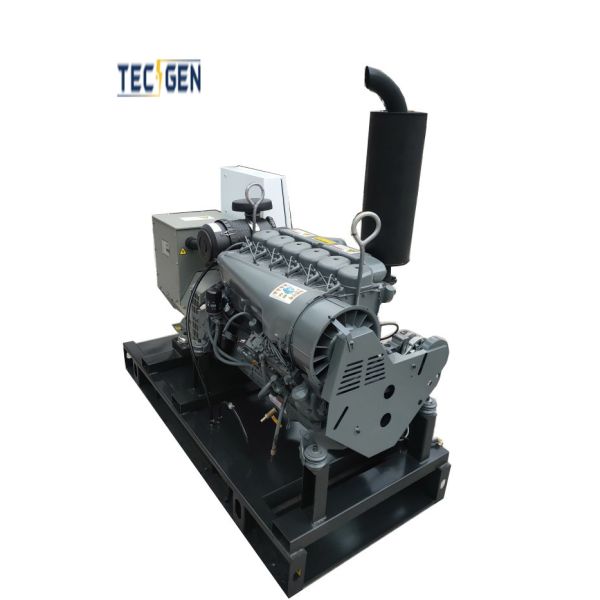

38kW Compact Air Cooled Diesel Generator With F6L912 Engine

  • 1
  • 2
  • 3

Brand Name : Tecgen Power

Model Number : TG52B

Certification : CE

Place of Origin : Fuzhou, China

MOQ : 1 unit

Price : Negotiation

Payment Terms : T/T, L/C, D/A, D/P

Supply Ability : 100 Units Per Month

Delivery Time : 15 Days

Packaging Details : Stretch film packaging

Product : Air Cooled Diesel Generator

Prime Power : 38kW / 48kVA

Max Power : 42kW / 52kVA

Engine : F6L912

Cooling Method : Air Cooled

Engine Cylinder : 6 Cylinder In Liner

Engine Power : 48kW Prime

Sizes (mm) : L1400 x W700 x H1050

Contact Now

Air cooled diesel generator 38kW compact aircooled generator with F6L912 engine

Air Cooled Diesel Generator Sets Overviews:

  • Power Capacity: Spanning from 10kW to 104kW, our generator sets meet diverse power needs.
  • Engine Variants: Wide range of engines including F2L912, F3L912, F4L912, F4L913, F4L912T, F6L912, F6L913, F6L912T, BF4L913, BF6L913, and BF6L913C.
  • Alternator Brands: Stamford, Leroy Somer, Mecc, Marathon, and top-quality Chinese alternators for reliable power output.
  • Frequency & Voltage Options: Available in 50Hz and 60Hz, with various voltage combinations to suit your needs.
  • Phase Configuration: Choose from single phase or three phase as per your application.
  • 12/24VDC Charging: Efficient charging generator for seamless operation.
  • Filtration System: Complete with dry air, fuel, and oil filters for enhanced performance.
  • Tank & Shock Absorber: Daily oil tank and shock absorber for smooth operation.
  • Control Panel & Charger: Standard control panel with a floating charger for ease of use.
  • Start Batteries & Cables: Includes 2 x 12VDC start batteries and battery connection cable.
  • Exhaust System: Complete set of smoke exhaust elbow, bellows, flange, and silencer for safe operation.
  • User Manual: Detailed information on generator set usage and maintenance for your convenience.

38kW Compact Air Cooled Diesel Generator With F6L912 Engine

38kW Air Cooled Diesel Generator Technical Data:

Air Cooled Diesel Generator Specifications
Genset Model TG52B
Type Open Frame
Cooling Method Air Cooling
Rated Power 38kW / 48kVA
Standby Power 42kW / 52kVA
Governor MECH
Frequency 50Hz
Rated Voltage 240 / 415V
Rated Current (A) 66.8A
Dimension (mm) L1400 x W700 x H1050
Gross Weight (kg) 600
Air-cooled Diesel Engine Brand Beinei Deutz Series Air-cooled Engine
Model F6L912
Configuration Air Cooled
Rated Power 48kW
Rated Speed (rpm) 1500rpm
Cylinder No. 6 Cylinder In line
Bore*Stroke (mm) 100 x 120
Displacement 5.655L
Intake Nature Intake
Fuel Consumption (g/Kw*h) 228@100% load
Starting method 24V DC / 80Ah
Brushless Type Alternator Brand Tecgen
Model TGI224S38
Rated Power 38kW
Materials 100% pure copper
Efficiency 92.50%
Voltage Regulation <=±1
Voltage Regulation Brushless, Self-excitation
Insulation Class H
Option brands Stamford / Leroy Somer / Meccalte
Control System Brand DEIF
Model SGC-420
Working Voltage DC8.0V to DC35.0V, continuous
Overall Dimensions (mm) 233*38.5*173
Panel Cutout (mm) 219*158
Working Condition 0 to 95 % RH. To IEC 60068-2-78
Functions AMF/ATS
RS485 & CAN communication
9 Inlet & 7 Outlet
PLC & BTN
Protections Under-speed
Over-speed
Configurable crank connect
Battery monitoring
Charging alternator
Pre-heat
Coolant temperature
Lube oil pressure
Fuel level detection
Fuel theft detection
ECU communication failure
ECU diagnostic lamp
Option brands Deepsea / Smartgen / ComAp / Mebay
Air Cooled Genset option equipment
Silent Type ATS Box / Cabinet
PMG Alternator Sync Panel
Trailer Type Alternator Heater
Spare Parts Fuel – Water Separator

Advantage of Air-cooled Diesel Engine F6L912:

Advanced Design and Excellent Manufacturing: Adapt to harsh working conditions, high strength, heavy duty operation.

Holset Exhaust Gas Bypass Valve: Perfect low speed performance, more powerful.

Better Reliability: Integrated design, 40% parts less than other similar engines, greatly reduced the failure rate.

Special Design of Cylinder Liner: Perfect geometric structure effectively prevent the oil leakage

High Pressure Rotor Fuel Pump: Lower fuel consumption, lower noise level.

38kW Compact Air Cooled Diesel Generator With F6L912 Engine

Air-cooled diesel generator sets offer unique benefits compared to water-cooled models:

  • Simplicity & Lightweight: Lacking complex water-cooling components, they're lighter and easier to transport & install.
  • Easy Maintenance: Simpler air-cooling design reduces maintenance costs & time, avoiding leaks & blockages.
  • Versatile Adaptability: Ideal for water-scarce or harsh environments, air-cooling excels in such conditions.
  • High Thermal Efficiency: With reduced cooling air volume, they generate more electricity with the same fuel.
